• A stacked frame is made up of two or more mouldings to add impact.
• The inner frame is measured as for a standard frame.
• The outer frame needs to fit the outside size of the inner frame. You'll need to add the width of the second moulding minus the rebate onto the dimensions for the first frame.

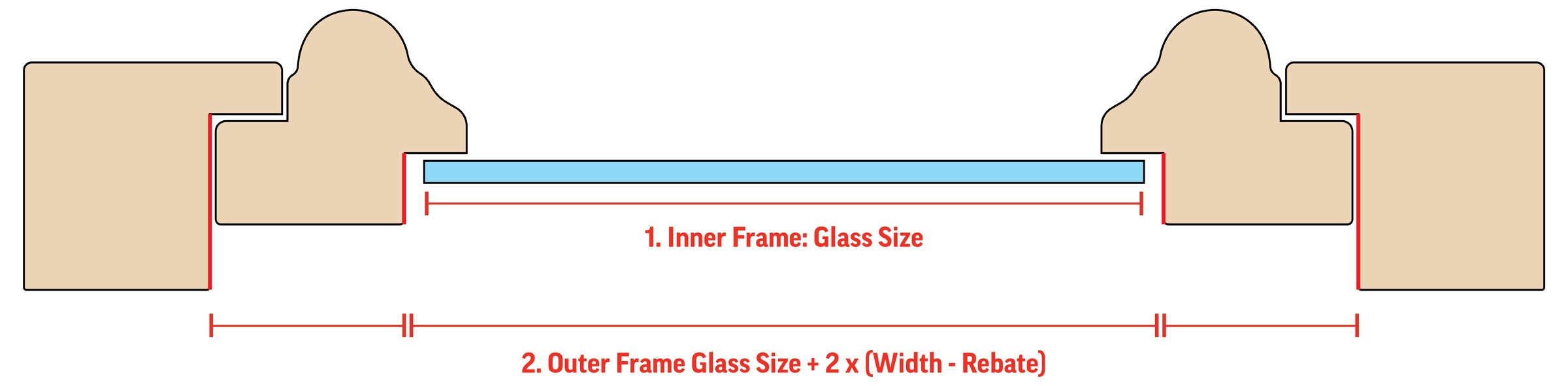

• Inner Frame: Order Glass Size.
• Outer Frame: Order Glass Size + 2 x (Width - Rebate). We recommend you choose to Add Fitting Tolerance to both inner and outer frame.
• For the rebate size check your chevron. If you don’t have a chevron you can work on the basis the rebate is 6 - 7mm.
• We cannot cut frames to the outside size.
